To waterproof a tunnel, you need to follow careful steps. First, check the site and find all water entry points. Then, prepare the surface so the waterproofing works well. You pick the right membrane system for your project and put it on carefully. Good drainage is important in tunnel waterproofing because it moves water away from the tunnel. If you want to waterproof a tunnel well, you must use good materials and skilled workers. Tunnel waterproofing keeps tunnels safe from leaks and damage over time. Waterproofing helps keep tunnels safe and strong.
Waterproofing tunnels stops leaks, rust, and harm. This helps tunnels stay safe and strong for a long time.
Pick the best waterproofing method for your tunnel’s design. Think about water pressure and local weather to get good results.
Clean the tunnel surface and fix cracks before you start. This helps waterproofing materials stick better and last longer.
Use drainage systems to move water away from the tunnel. This lowers pressure and helps stop cracks and leaks.
Check and take care of tunnels often. Find and fix problems early to avoid big repairs and keep tunnels safe.

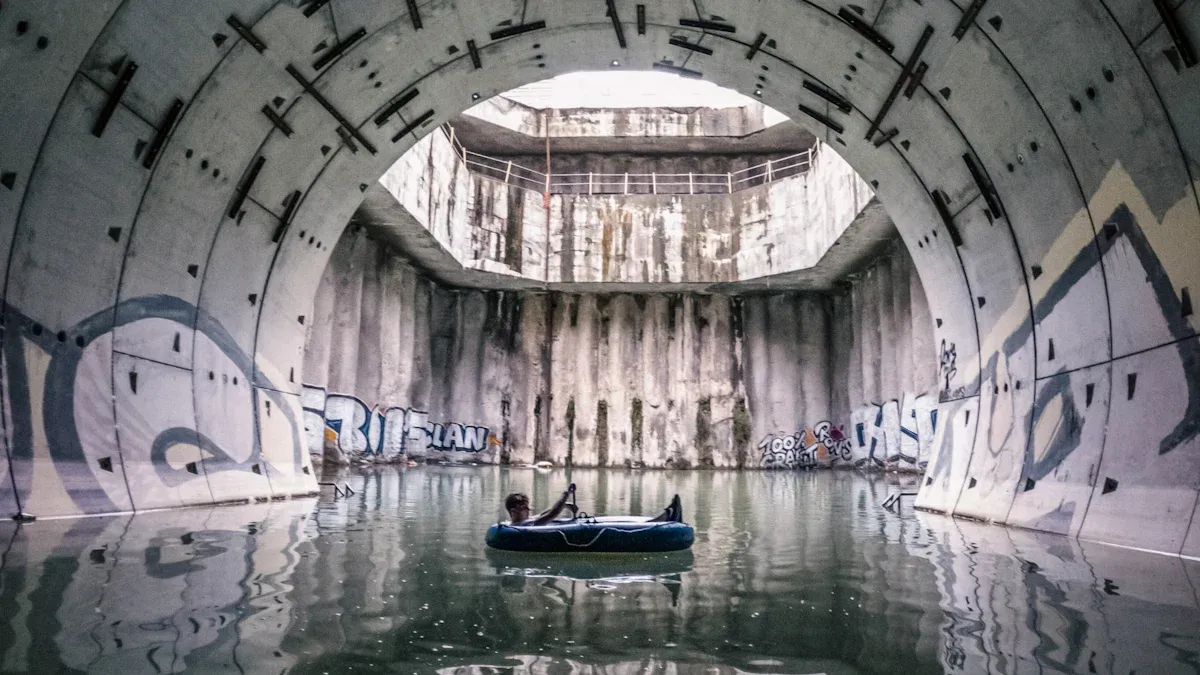

Water ingress is a big problem for tunnels. When water gets in through cracks or joints, it can make leaks and rust happen. It can even hurt the tunnel’s structure. You might see water stains or white marks called efflorescence. Sometimes, you may spot rust on steel bolts. These things show up more in tunnels with bad waterproofing. When people check tunnels, they often find leaks, broken concrete, and rusted rock bolts. These problems make the tunnel weaker and shorten how long it lasts.
Tip: Checking tunnels often with tools like extensometers and inclinometers helps you see changes in tunnel safety and water levels.
A study using Terrestrial Laser Scanning found that water ingress makes tunnel joints weaker and causes faster weathering. In places with lots of rain and humidity, water ingress gets worse. You can stop these problems by putting in drainage systems and using good tunnel waterproofing. Good waterproofing keeps water out and protects the tunnel lining from harm. For more about tunnel structures, see Tunnel - Wikipedia.
Tunnel waterproofing is very important for keeping tunnels safe and strong. Without good waterproofing, leaks and rust can happen. Sometimes, the tunnel can even fail. Studies show that chloride can get in from both sides of the tunnel walls. This makes rust happen much faster. Cracks and joints let in bad things, so sealing and waterproofing are needed.
You can see how waterproofing helps in service-life models. These models show that bad waterproofing and poor building work cause early rust and damage. Using the right tunnel waterproofing stops joints from failing and keeps the lining from falling apart. This helps the tunnel stay safe and last longer.
Key benefits of tunnel waterproofing:
Makes the tunnel last longer.
Lowers the cost to fix the tunnel.
Makes the tunnel safer for people.
Stops damage from the environment.
A good waterproofing plan helps you avoid expensive repairs and keeps the tunnel strong. For more about waterproofing, visit Waterproofing - Wikipedia.
There are a few main ways to waterproof tunnels. Each way works best in certain places. You must pick the right method for your tunnel’s design, water pressure, and weather.
Membrane systems use special membranes to stop water from getting in. You can use PVC geomembranes, waterproofing sheets, or waterproofing sprays. Waterproofing sheets are good for new tunnels with smooth walls. Sprays help cover tricky shapes and small spaces fast. In Norway, railway tunnels used membrane systems to keep water out, even in tough rock and high pressure. Over time, less water stays in the membrane, so it keeps working well. You need to check quality during installation. The surface and temperature can change how well the membrane works. For more about membranes, see Waterproofing membrane - Wikipedia.
Note: Spray-applied waterproofing membranes are flexible. But you may need extra care if the weather is very harsh.
Injection techniques help seal cracks, joints, and empty spaces in tunnels. You inject things like polyurethane, acrylic resins, or microfine cement into the cracks. This method is good for fixing leaks and for tunnels that already have water coming in. In London, resin grout stopped water in just 15 minutes during a tunnel fix. Injection hose systems let you seal joints again if leaks come back. You often use injection at construction joints where water can get in.
Injection methods fix leaks quickly.
You can use them in old tunnels and new tunnels.
Cement-based solutions use coatings, mortars, or crystalline shotcrete to block water. You put these materials on the tunnel lining. Additives like fly ash or fibers make the concrete stronger and less likely to crack. These solutions work best for tunnels with low or medium water pressure. Studies show that concrete with special additives keeps water out better than regular mixes. Sometimes, the concrete is harder to work with, but it gives better waterproofing.
Drainage systems move water away from the tunnel. You put pipes, geotextiles, or geodrenes behind the tunnel lining. Good drainage lowers water pressure and keeps the tunnel safe. Without good drainage, water builds up and can crack the tunnel. New drainage boards with convex shells lower water pressure by about 30%. They keep working even when soil tries to block them. In China, case studies show that better drainage stops leaks and damage. For more about drainage, see Drainage system - Wikipedia.
Tip: Always pick tunnel waterproofing methods that fit your tunnel and the local area. This helps you get the best results for a long time.
Every tunnel waterproofing job starts with a site check. You need to know the ground type and water level. Look for cracks or joints in the tunnel. Check the tunnel walls and ceiling for water leaks. Use tools to measure water pressure and find weak spots. This helps you pick the best waterproofing method. It also helps you plan drainage. A good check stops surprises later and helps the project go well.
Tip: Always write down where cracks or joints are. Note their size too. This helps you fix and waterproof them the right way.
Getting the surface ready is very important. Clean the tunnel to get rid of dust, oil, and loose stuff. Use sand-blasting or a vacuum for a smooth finish. No one should walk or drive in after cleaning. Fix any broken concrete with repair mortars. Make sure the surface is dry and not wet or frozen. A clean, dry surface helps the membrane or coating stick better and last longer.
Take away all dirt and grease.
Make rough spots smooth.
Fill holes and fix damaged areas.
Before you put on a membrane, you need to prime the surface. Pick a primer that works with your waterproofing system. You can use solvent-based asphalt or water-based primers. Spread the primer evenly and let it dry. This helps the waterproofing layer stick well.
Fixing cracks is just as important. For small cracks, you may not need extra support. For bigger cracks, use a fabric or flashing membrane. Put these into a hot-applied membrane layer. For expansion joints, use neoprene flashing that can move with the tunnel. Make sure the fabric is flat and has no folds. Clean and prime metal before adding flashing.
Note: Do not use hot-mix patching for leveling. Use repair mortars made for concrete fixes.
Now you can put on the main waterproofing system. Pick the method that fits your tunnel best. Membrane systems, injection techniques, and cement coatings all work well. Polymer bituminous membranes block water. Injection grouts or resins seal cracks and joints. Cement coatings make a strong, waterproof layer.
Put drainage systems behind the tunnel lining. Use pipes, geotextiles, or drainage boards to move water away. This lowers water pressure and keeps leaks out. Some new systems use induction welding plates to attach membranes without holes. Each part, from the membrane to drainage, works together to keep the tunnel dry.
Spread the waterproofing layer evenly.
Add drainage to control water.
Use anchors and waterstops for more safety.
Quality control makes sure your tunnel waterproofing lasts. Check each step as you go. Use water tests to look for leaks. Watch water levels and flow with sensors. Test how strong gaskets and seals are, especially at joints. Use data to track changes in the tunnel shape. Regular checks help you find and fix problems early.
Alert: Use tests, sensors, and regular checks for the best results. This keeps your tunnel safe and dry for a long time.
A step-by-step process, from checking the site to quality control, helps you waterproof a tunnel well. Each step builds on the last one. This keeps your tunnel safe from water and damage. For more on tunnels and waterproofing, visit Tunnel - Wikipedia or Waterproofing - Wikipedia.
You must check tunnels often to keep them safe and dry. Regular checks help you find leaks, cracks, or damage early. When you look at the tunnel, watch for stains, rust, or loose concrete. These things can mean water is getting inside. If you check on a schedule, you can fix small problems before they get worse. You should use national rules for tunnel inspections. These rules help you look at every part, like the waterproofing, drainage, and safety systems.
Evidence Type | Description | Support for Tunnel Maintenance |
---|---|---|
National Tunnel Inspection Standards (NTIS) | Sets rules for checking tunnels, including waterproofing, drainage, and safety systems. | Makes sure you inspect tunnels often and follow safety rules. |
I-70 Hanging Lake Tunnel (2007) | Inspectors found a roof crack and closed the tunnel for repairs. | Shows why regular checks are important for safety. |
Central Artery Tunnel Collapse (2006) | Tunnel collapse led to better inspection rules. | Reminds you that missing inspections can cause big problems. |
Tip: Use sensors and monitors to watch water levels and find leaks early. This helps you fix problems fast and stop damage.
If you find leaks or cracks, fix them right away. Fast repairs stop water from making things worse. You can seal cracks, seal joints, or put in new gaskets to stop leaks. Sometimes, you need to inject grout or put on new membranes. Always pick the repair that fits the problem you see. If drains are blocked, clear them so water can flow out. Quick repairs keep the tunnel strong and safe for everyone.
Seal cracks and joints as soon as you find them.
Replace damaged waterproofing materials.
Clean and fix drainage systems to stop flooding.
After some time, you might need to upgrade your tunnel’s waterproofing. New materials and tools can help tunnels last longer and stay safer. You can add better membranes, put in new drainage boards, or use smart monitors. These upgrades help you handle more water and find leaks faster. Anti-flooding tools, like backup pumps and alarms, give extra help during heavy rain. Upgrading helps your tunnel stay dry and safe for many years.
Note: Regular checks, fast repairs, and smart upgrades all work together to protect your tunnel. For more about tunnel safety, see Tunnel - Wikipedia.
You can keep water out of a tunnel by doing a few main things. First, check the site to see what needs fixing. Next, get the surfaces ready and fix any cracks you find. Then, put on the right waterproofing system. Make sure to check your work for quality. Use strong materials and have skilled workers do the job. This helps the tunnel stay safe. Check the tunnel often and fix problems fast. If your project is hard, ask experts for help and make a good plan for the future. You can read more at Tunnel - Wikipedia.
Remember: Good waterproofing keeps your tunnel safe for many years.
Pick the method that fits your tunnel and soil. Membrane systems are good for new tunnels. Use injection techniques to fix leaks. Drainage systems help all waterproofing work better. You can read more at Waterproofing membrane - Wikipedia.
Check tunnels at least once every year. After big storms or earthquakes, check again soon. Regular checks help you find leaks early and keep tunnels safe.
Small leaks can be fixed with injection or sealants. For bigger repairs, you might need to close part of the tunnel. Fast repairs stop small leaks from getting worse.
Drainage systems move water away from the tunnel walls. Good drainage lowers water pressure and stops leaks. Without drainage, water can hurt the tunnel. See Drainage system - Wikipedia.
PVC membranes, crystalline coatings, and strong resins last a long time. Use materials that fit your tunnel’s needs. Good materials help you avoid fixing things often.
