Water damage below ground can ruin a building’s foundation. How do you protect these vulnerable areas? Below-Grade Waterproofing is essential to stop water infiltration and preserve structural integrity. In this post, you’ll learn what below-grade waterproofing is, common challenges, and how different systems compare.
Blindside waterproofing, also called pre-applied waterproofing, is a method applied before the concrete foundation walls are poured. Instead of applying waterproofing after the wall is built, the membrane and drainage layers are installed on the soil retention system or shoring first. Then, concrete is poured against this waterproofing layer, effectively sandwiching it between the soil and the foundation wall.This approach places the waterproofing on the positive side of the wall — the exterior side exposed to groundwater and soil moisture. The concrete wall supports the membrane, helping it resist hydrostatic pressure and prevent water infiltration. Since the waterproofing is installed first, it’s ideal for sites where access to the outside of the foundation is limited or impossible.
Traditional below-grade waterproofing is typically post-applied, meaning it’s installed after the concrete walls are poured and cured. This method requires excavation around the foundation to expose the wall’s exterior. The membrane is then applied directly to the concrete surface.In contrast, blindside waterproofing is installed before the foundation wall construction. This difference leads to several unique characteristics:
Installation surface: Blindside membranes are applied to soil retention systems like lagging beams or sheet piles, which are often uneven and less stable than cured concrete.
Bonding: The membrane must strongly adhere to the freshly poured concrete to form a continuous waterproof barrier.
Access: Blindside waterproofing allows waterproofing in tight urban sites or near property lines where excavation isn’t feasible.
Complexity: The installation is more complex due to the irregular substrate and the need for precise coordination with concrete pours.
Blindside waterproofing is commonly chosen when site conditions prevent traditional waterproofing:
Limited excavation space: Urban infill projects with adjacent buildings or property lines too close for soil removal.
Deep foundation walls: Excavation support systems like soldier piles or slurry walls leave no room to access the exterior foundation face.
Sensitive environments: Sites near contaminated soils or brownfields, where minimizing soil disturbance is critical.
Tight schedules: Projects requiring simultaneous waterproofing and foundation construction to save time.

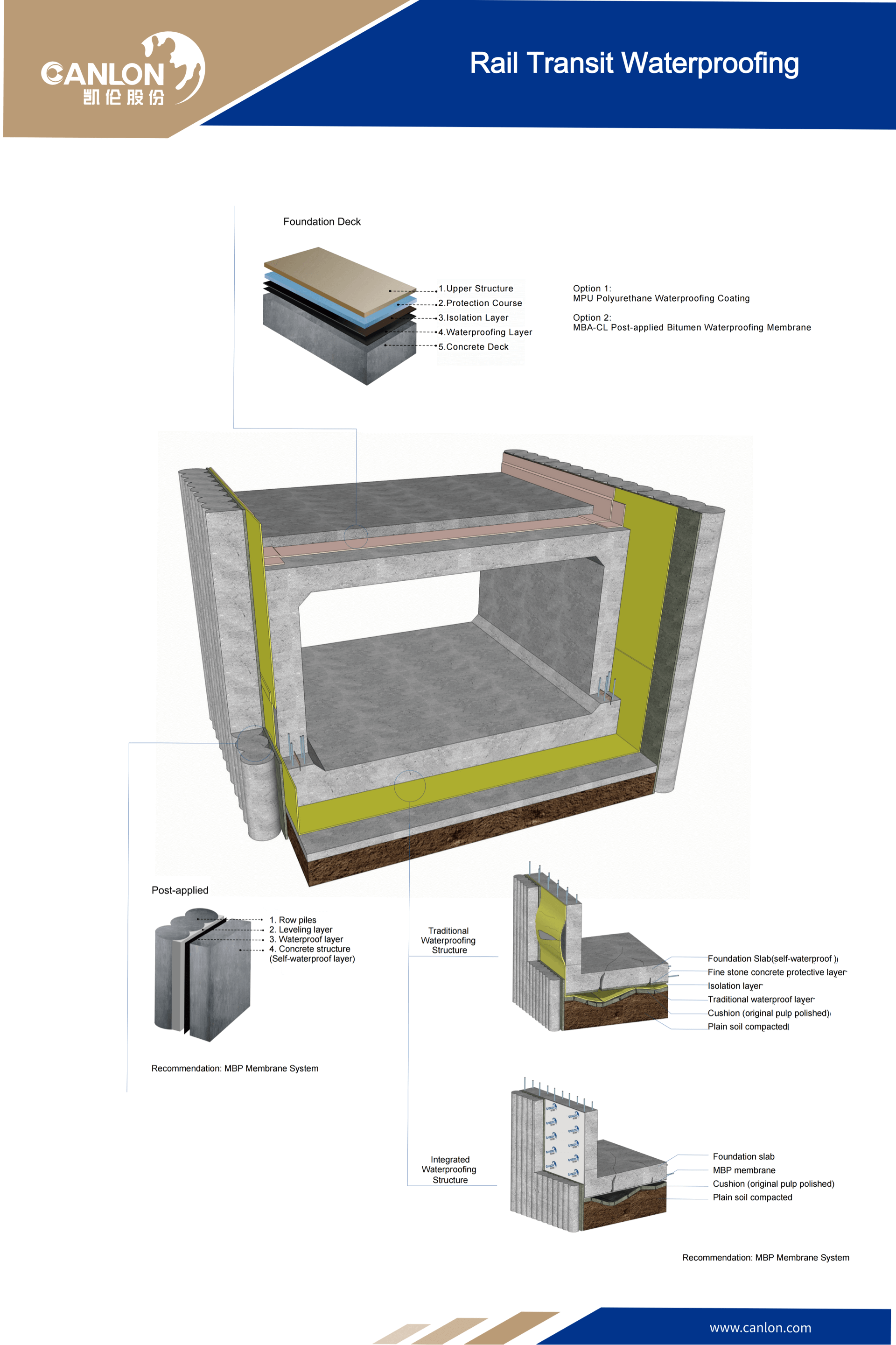

Examples include multifamily residential buildings in dense neighborhoods, hospitals expanding on constrained sites, subway tunnels, or zero-lot-line commercial developments.
Note: Blindside waterproofing demands careful planning and coordination among contractors, engineers, and waterproofing manufacturers to ensure proper adhesion and system integrity under challenging site conditions.
Traditional below-grade waterproofing usually happens after pouring and curing foundation walls. This approach, known as post-applied waterproofing, requires excavating around the foundation to expose the exterior surface. Then, waterproofing materials are applied directly to the concrete.Post-applied waterproofing methods include:

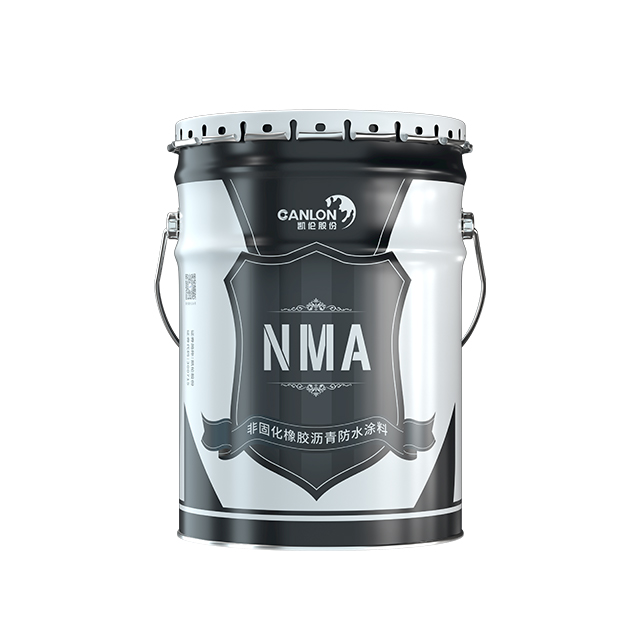

Liquid-applied membranes: These are elastomeric coatings applied with rollers or spray. They form a seamless barrier that conforms to irregular surfaces.
Sheet membranes: Prefabricated sheets of modified bitumen, rubber, or thermoplastic materials are adhered or mechanically fastened to the concrete.
Mineral-based systems: Bentonite clay panels or crystalline admixtures that react with moisture to block water pathways.
This method allows installers to inspect and repair the substrate before application, ensuring good adhesion. However, it requires ample space for excavation and risks damage during backfilling.
Waterproofing can be applied on either the positive or negative side of the foundation wall:
Positive-side waterproofing: Applied to the exterior surface directly exposed to soil and groundwater. It prevents water from reaching the concrete and is the preferred method for new construction. It also protects reinforcing steel from corrosion.
Negative-side waterproofing: Applied to the interior surface of the foundation wall, typically during repairs or when exterior access is impossible. It stops water that has already penetrated from entering occupied spaces but does not protect the concrete itself from moisture damage.
Positive-side waterproofing is generally more effective at preventing leaks and preserving structural integrity. Negative-side methods are often temporary or remedial solutions.
Several materials are commonly used in traditional post-applied waterproofing systems:
Modified bitumen membranes: Durable sheets that can be torch-applied or self-adhesive, offering strong resistance to water and chemicals.
Elastomeric liquid membranes: Flexible coatings that bridge cracks and adhere well to concrete.
Bentonite panels: Clay-based sheets that swell when wet to seal gaps and cracks.
Crystalline waterproofing: Admixtures or surface treatments that react chemically to block water pathways inside concrete.
Protection and drainage boards: Installed over membranes to shield them from damage during backfill and facilitate water drainage away from the foundation.
Selecting materials depends on site conditions, hydrostatic pressure, and project requirements. For example, high hydrostatic pressure sites benefit from robust membranes combined with effective drainage systems.
Tip: For effective post-applied waterproofing, always ensure the substrate is clean and free of defects before membrane application to maximize adhesion and durability.
Blindside waterproofing begins before foundation walls are poured. First, the soil retention system or shoring—like lagging beams, sheet piles, or slurry walls—is prepared and cleaned. Next, the waterproofing membrane is applied directly onto this surface. Since the substrate isn’t flat or uniform, installers must carefully ensure full adhesion and coverage, including all seams and corners.After membrane installation, a drainage layer or protection board is often added to manage water movement and shield the membrane during concrete placement. Then, concrete is poured against the membrane, embedding it between the soil and foundation wall. The fresh concrete chemically bonds with the membrane, creating a continuous waterproof barrier.This process demands close coordination among waterproofing installers, concrete crews, and project managers. Timing is critical to avoid membrane damage before concrete placement. Quality control inspections before and after membrane installation help catch any defects early.
Traditional waterproofing happens after foundation walls are poured and cured. The process starts with excavating around the foundation to expose the wall’s exterior surface. The concrete is inspected and repaired if needed, ensuring it’s clean and dry for membrane adhesion.Next, the waterproofing membrane or coating is applied. This can be a liquid-applied elastomeric membrane, sheet membrane adhered or fastened to the wall, or bentonite panels. Installers pay special attention to seams, penetrations, and joints, ensuring a watertight seal.Once the membrane is applied and inspected, a drainage board or protection layer is installed to prevent damage during backfilling. Finally, the soil is carefully backfilled and compacted, taking care not to puncture the membrane.This method offers better surface preparation and inspection but requires sufficient space for excavation. It also carries risk of membrane damage during backfill and delays due to excavation and repair work.
Blindside waterproofing faces challenges due to the irregular substrate of soil retention systems. Achieving full adhesion on uneven surfaces is tough. Concrete overspray or splatter can contaminate membranes during multi-lift pours, weakening the bond. Access is limited, so repairs after concrete placement are nearly impossible. Coordination between trades is essential to avoid schedule conflicts.Traditional post-applied waterproofing benefits from direct access to the concrete wall, allowing thorough inspection and repairs before membrane installation. However, excavation space may be limited in urban or tight sites, making this method infeasible. Membranes remain vulnerable to damage during backfilling, requiring extra care. Weather conditions can also delay application if the substrate is wet or frozen.Both methods demand skilled installers familiar with the specific materials and site conditions. Choosing between them depends on site constraints, project schedule, and risk tolerance.
Tip: For blindside waterproofing, ensure membrane installation and concrete pours are tightly coordinated to prevent contamination and maintain a strong bond.
Below-grade waterproofing relies on several material types, each tailored for specific site conditions and performance needs.
Sheet membranes are prefabricated waterproofing layers made from materials like modified bitumen, rubberized asphalt, or thermoplastics. They come in rolls and are applied either before or after concrete placement. Their uniform thickness and flexibility make them popular for both blindside and traditional waterproofing. They create a continuous barrier when seams are properly sealed.
Bentonite panels consist of natural clay that swells when wet, filling gaps and sealing cracks. These panels are often laminated with protective films on one or both sides to enhance durability and ease of installation. Bentonite’s self-sealing properties make it ideal for sites with fluctuating moisture levels or minor substrate movement.
Composite waterproofing systems combine multiple materials, such as bentonite with a sheet membrane or drainage layers. These hybrids provide robust protection against water infiltration and help manage hydrostatic pressure by facilitating drainage. Composite systems can also incorporate vapor barriers and gas protection layers, important in contaminated or methane-prone soils.
Selecting waterproofing materials requires careful evaluation of site-specific factors:
Hydrostatic pressure: Materials must resist water pressure pushing against foundation walls. Membranes should be puncture-resistant and maintain adhesion under pressure. Bentonite panels must retain swelling capacity without losing integrity.
Substrate conditions: Blindside membranes bond to uneven soil retention systems, demanding flexibility and strong adhesive properties. Traditional membranes adhere to cured concrete, allowing different bonding mechanisms.
Chemical exposure: Contaminated soils or groundwater require chemically resistant membranes to prevent degradation. HDPE and butyl rubber membranes offer superior chemical resistance.
Temperature and climate: Some materials become brittle in cold or soften in heat. Installation timing and storage must consider temperature limits to maintain membrane performance.
Drainage and vapor control: Integrating drainage layers with waterproofing materials helps relieve hydrostatic pressure. Vapor barriers prevent gas intrusion, important in brownfield or methane-prone sites.
Proper material selection, tailored to these conditions, ensures a durable waterproofing system that protects the building for decades.
Tip: Choose waterproofing materials that chemically bond with fresh concrete in blindside applications to ensure a seamless, long-lasting barrier against water infiltration.
Blindside waterproofing shines in tight or restricted construction sites. When excavation space is limited by neighboring buildings, property lines, or underground utilities, traditional exterior waterproofing becomes impractical or impossible. Blindside systems allow waterproofing to be installed before foundation walls go in, fitting perfectly against soil retention systems like soldier piles or sheet piles. This method enables builders to maximize land use without over-excavating or disturbing adjacent properties. It also suits deep foundation walls where exterior access is blocked by shoring or slurry walls.
Blindside waterproofing reduces soil disturbance, lowering environmental impact. Minimizing excavation helps avoid contamination spread in brownfield sites or areas with hazardous soils. It can contribute to sustainability goals and potentially earn LEED credits for site preservation. Construction schedules benefit too. Installing waterproofing before concrete pours allows foundation work and waterproofing to proceed simultaneously, saving time. It also eliminates delays caused by post-pour excavation or repairs. This integrated approach streamlines coordination and accelerates project delivery.
Despite its benefits, blindside waterproofing carries challenges. The substrate is uneven soil retention systems, making membrane adhesion tricky. Any surface contamination or concrete overspray during multi-lift pours can weaken the bond, risking leaks. Repairs after concrete placement are nearly impossible, so installation defects are critical. Blindside membranes must be highly flexible and chemically bond with fresh concrete to ensure integrity. Also, coordinating waterproofing installation with concrete crews demands precise timing and communication. Failure here can compromise the entire system.
Traditional post-applied waterproofing still excels when site conditions allow full excavation around foundation walls. It permits thorough inspection and repair of concrete before membrane application, ensuring a clean, sound substrate. This method reduces risks linked to uneven substrates and bonding challenges faced in blindside applications. Post-applied systems also allow easier access for repairs or upgrades over the building’s lifespan. For less constrained sites with ample space and lower risk of soil contamination, traditional waterproofing often provides a simpler, more reliable solution.
Tip: Choose blindside waterproofing for sites with tight access or environmental constraints, but ensure rigorous quality control and coordination to avoid costly installation errors.
Before choosing a waterproofing system, carefully evaluate the site layout and soil retention methods. Tight urban sites often have limited space for excavation, making traditional exterior waterproofing difficult or impossible. Soil retention systems like soldier piles with lagging, sheet piles, or slurry walls can block access to foundation exteriors. These systems create uneven, rough surfaces where blindside waterproofing membranes must be applied. Knowing the type, condition, and stability of soil retention helps determine the best waterproofing approach and materials that can adhere properly.
Hydrostatic pressure is a major factor influencing waterproofing design. Water pressure increases with soil saturation and depth, pushing against foundation walls. Waterproofing materials must resist this pressure without failing or detaching. Proper drainage systems are essential to relieve hydrostatic pressure and prevent water buildup. Drainage boards, gravel layers, and perforated pipes help channel water away from the foundation. Without effective drainage, even the best membranes can be overwhelmed, leading to leaks or structural damage.
Climate affects material choice and installation timing. Cold temperatures can make membranes brittle or adhesives less effective, while heat may soften materials or cause premature curing. Some products require minimum temperature thresholds for proper application. Moisture and freeze-thaw cycles also challenge waterproofing durability. Selecting materials formulated for local climate conditions ensures long-term performance. Additionally, planning installation during favorable weather reduces risk of defects caused by moisture or temperature extremes.
Waterproofing integrity depends heavily on precise detailing at joints, penetrations, and transitions. These areas are vulnerable to leaks if not properly sealed. Penetrations for pipes, conduits, or structural elements require specialized flashing and sealants compatible with the membrane. Expansion joints must accommodate movement without breaking the waterproof barrier. Corners and overlaps between membrane sheets need reinforcement to prevent gaps. Careful detailing and quality workmanship at these critical points ensure a continuous, watertight envelope that protects the building below grade.
Tip: Always prioritize thorough detailing and robust drainage design to enhance waterproofing durability and prevent costly water intrusion issues.
Successful waterproofing starts with thorough quality control and substrate prep. The substrate must be clean, dry, and free from debris, oils, or loose materials. For blindside waterproofing, the membrane is applied to soil retention systems, which are often uneven and can harbor contaminants. Inspect these surfaces carefully and clean as needed before membrane installation. Any cracks or defects in the substrate should be repaired to ensure a smooth, continuous surface.Quality control should include pre-installation meetings among contractors, engineers, and manufacturers to clarify responsibilities and sequencing. Field inspections during installation verify proper membrane placement, seam sealing, and damage repairs. Testing adhesion or continuity can help catch issues early.
Waterproofing materials are sensitive to environmental conditions. Store membranes and coatings in dry, temperature-controlled areas to prevent damage from UV exposure, freezing, or excessive heat. Follow manufacturer guidelines for storage duration and conditions.Handling membranes carefully avoids tears or punctures. During installation, protect materials from sharp objects, heavy equipment, or concrete overspray. For blindside applications, concrete splatter between pours can contaminate membranes, weakening bonds. Use protective layers or temporary covers as necessary.
Proper installation demands skilled labor trained in the specific waterproofing system. Manufacturers often provide training programs or technical support to ensure installers understand product handling, detailing, and troubleshooting.Close collaboration among waterproofing installers, concrete crews, and project managers is vital. Blindside waterproofing especially requires precise timing to apply concrete soon after membrane placement to secure bonding. Regular communication prevents schedule conflicts or damage.Engage manufacturers early for design reviews, mock-ups, and site visits. Their expertise can help tailor solutions to unique site conditions and improve installation quality.
A comprehensive warranty protects your investment. Choose products and contractors offering single-source warranties covering materials and workmanship. This ensures accountability and simplifies claims if issues arise.Post-installation, periodic inspections help detect damage or deterioration early. Maintenance includes checking drainage systems to prevent water buildup and repairing any membrane breaches promptly. Proper backfill compaction and protection boards also extend membrane life.
Tip: Establish clear quality control protocols and ensure all installers receive manufacturer training to maximize waterproofing system longevity and performance.
Blindside waterproofing is ideal for tight sites where excavation is limited, while traditional methods suit open areas with full access. Site constraints, hydrostatic pressure, and schedule needs influence the best choice. Consulting waterproofing professionals ensures proper system selection and installation. www.canlon.com CANLON offers advanced products that enhance durability and simplify installation, providing reliable protection for below-grade structures. Their expertise helps maximize building longevity and waterproofing performance in challenging conditions.
A: Below-grade waterproofing protects foundation walls from groundwater and soil moisture, preventing water infiltration that can damage the structure and interior spaces.
A: Blindside waterproofing is applied before concrete is poured on soil retention systems, while traditional methods are post-applied after excavation exposes cured concrete walls.
A: Blindside waterproofing is ideal for sites with limited excavation space, deep foundation walls, or environmental constraints where traditional below-grade waterproofing isn’t feasible.
A: Materials include sheet membranes, bentonite panels, liquid-applied coatings, and composite systems designed to resist hydrostatic pressure and bond with concrete.
A: Proper substrate preparation, quality control, skilled installers, and coordination with manufacturers help achieve durable below-grade waterproofing performance.
