Zero-lot-line and deep excavation construction leave no room for exterior foundation access. You pour concrete directly against the soil retention system. This spatial constraint makes traditional positive-side waterproofing physically impossible. Below-grade water ingress introduces catastrophic financial, operational, and structural risks. Remediating a failed soil-side system post-construction is technically difficult and prohibitively expensive. Injection repairs often cost orders of magnitude more than the initial installation. Structural degradation from continuous hydrostatic pressure compromises the entire building envelope.
Mitigating these risks requires a rigorous, evidence-based approach. Success depends on precise substrate preparation, accurate material science selection, and critical detailing. Proper concrete mix coordination and placement risk mitigation are equally vital. Implementing proper Blindside Membrane Installation ensures long-term foundation integrity and prevents lateral water migration.
Substrate Preparation is Non-Negotiable: The performance of any pre-applied waterproofing system is directly dictated by the stability, flatness, and uniformity of the soil retention system (lagging, shotcrete, or sheet piling).
Detailing Dictates Durability: Over 90% of blindside failures occur at penetrations, tiebacks, seams, terminations, and transitions rather than the field of the membrane.
Concrete Mix Design & Placement are Critical: Rebar installation, concrete mix slump, aggregate size, and consolidation (vibration) present the highest risks of membrane puncture and poor chemical/mechanical bonding.
Material Selection Must Match Site-Specific Data: Choosing between bentonite, HDPE, PVC, or hybrid systems must be driven by hydrostatic pressure limits, soil contaminants, water chemistry, and expected UV exposure.
Waterstop Integration is Essential: Blindside membranes must work in tandem with active and passive waterstops at all construction cold joints to prevent lateral water migration.
Urban infill projects, property line constraints, and deep foundations necessitate blindside applications. Subway tunnels and zero-lot-line developments also require this approach. In these scenarios, workers cannot excavate outside the foundation wall. The waterproofing must be installed before the structural concrete is poured. The baseline success criteria is zero water ingress under continuous hydrostatic pressure. Systems are tested up to ASTM D5385 standards. The waterproofing barrier must maintain integrity over the building's entire design lifespan. Any failure compromises the structural steel and interior environment.
When you work on a site with zero clearance, you rely entirely on the pre-applied system. There is no second chance to coat the exterior wall. The membrane must perform flawlessly from day one. This requires a shift in mindset from traditional waterproofing. You are not just applying a coating; you are building an integrated barrier system that must survive the brutal process of heavy concrete placement.
Blindside systems mechanically or chemically bond to the structural concrete poured against them. This integral bond is the defining characteristic of pre-applied waterproofing. As the concrete cures, it fuses with the membrane's active layers or mechanical profiles. This bond prevents lateral water migration between the membrane and the concrete structure. If a puncture occurs during construction, water cannot travel along the concrete surface. The leak remains localized, making targeted injection repairs possible. Without this bond, water tracks freely, making leak detection nearly impossible.
Understanding this bonding mechanism is vital for field execution. If the concrete does not consolidate properly against the membrane, the bond fails. Voids, honeycombing, or dirt on the membrane surface will compromise the adhesion. Installers must protect the bonding face from dust, mud, and form release agents until the concrete is poured.
ASTM D5385: Standard Test Method for Hydrostatic Pressure Resistance of Waterproofing Membranes. This establishes the minimum threshold performance under continuous water pressure.
ASTM D903: Standard Test Method for Peel Adhesion. This evaluates the strength of the bond to the poured concrete, ensuring long-term attachment.
ASTM E154: Standard Test Methods for Water Vapor Retarders. This measures puncture resistance, a critical factor during rebar placement and concrete pouring.
ASTM D412: Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers. This measures tensile strength and elongation, indicating how well the membrane handles structural movement.
Poor installation carries severe financial implications. Interior polyurethane or epoxy injection remediation costs are exorbitant. These repairs are disruptive and often require continuous maintenance. Water ingress leads to structural degradation. Rebar corrosion expands the steel, causing concrete spalling and compromised load-bearing capacity. Moisture infiltration also triggers mold growth, leading to potential litigation and severe project handover delays.
I have seen projects delayed for months because a poorly detailed tieback leaked under hydrostatic pressure. The cost to drill through heavily reinforced concrete and inject chemical grout far exceeds the cost of doing the detailing correctly the first time. The risk profile of below-grade water ingress demands absolute precision during the installation phase.
Sodium bentonite swells upon contact with water. It forms a dense, low-permeability clay gel seal against the concrete. This active mechanism provides a reliable barrier under normal ground conditions. These systems are cost-effective and self-healing for minor punctures. However, they are highly vulnerable to premature hydration from rain prior to concrete placement. Bentonite is also incompatible with high-saline, acidic, or contaminated groundwater, which prevents the clay from swelling properly.
When using bentonite, site water management is your biggest challenge. If a heavy rainstorm hits before the pour, the bentonite can pre-hydrate and wash away, leaving you with no waterproofing. You must cover the installed membrane with plastic sheeting and manage surface water meticulously.
Synthetic membranes rely on chemical pressure-sensitive adhesives or mechanical grit-coatings. These layers bond integrally with wet concrete during the curing process. The polymer sheet provides the primary impermeable barrier. They offer exceptional resistance to hydrostatic pressure and soil contaminants. They effectively block hydrocarbons and methane gas. However, they require meticulous seam welding or taping. The rigid nature of thick polymer sheets makes complex detailing labor-intensive.
For deep excavations with high water tables, synthetic polymers are usually the standard. The heat-welded seams of PVC systems provide a verifiable, monolithic barrier. You can pressure-test the seams before the rebar goes in, giving you a high degree of confidence in the installation.
Hybrid systems combine polymer sheets with reactive gels or fluid-applied detailing coats. This approach leverages the strengths of multiple material sciences. The sheet provides field coverage, while fluids handle complex geometry. This method offers superior detailing flexibility around tiebacks and penetrations. It reduces the risk of fishmouths and bridging. The trade-off is typically a higher material cost. It also requires specialized certified applicator training to ensure compatibility between components.
| Site Condition | Evaluation Criteria | System Recommendation Impact |
|---|---|---|
| Water Table Elevation | Perched vs. continuous hydrostatic head | High continuous head requires robust synthetic polymers (HDPE/PVC) with welded seams. |
| Soil Chemistry | Salinity, sulfates, organic solvents, radon, methane | Contaminants rule out standard bentonite; necessitates chemical-resistant synthetic membranes. |
| UV/Weather Exposure | Expected duration before concrete pour | Prolonged exposure requires UV-stable polymers; bentonite risks premature hydration from rain. |
| Structural Movement | Shear forces from settling or seismic activity | High movement demands flexible hybrid systems or high-elongation polymers to prevent tearing. |
| Shoring Type | Wood lagging vs. shotcrete vs. sheet piles | Rough shotcrete requires heavy fleece-backed membranes; wood lagging requires dimple drain boards. |
Soldier pile and wood lagging systems require specific preparation. Contractors must address gaps between lagging boards. Wood rot and active water seepage must be resolved before membrane placement. Heavy-duty geotextile fabrics often bridge these gaps. Secant piles and sheet piling present irregular contours. Planar variations and sharp interlocking joints threaten membrane integrity. Plywood facing or thick drainage composites help create a suitable uniform surface.
Shotcrete shoring walls demand careful surface profiling. Achieving the correct ICRI Concrete Surface Profile is essential. Overspray and rebound must be chipped away to prevent sharp protrusions from puncturing the membrane. You cannot install a membrane over sharp rocks or exposed tie-wire. The substrate must be sound and relatively smooth.
Filling lagging voids is a preliminary step. Low-strength grout, plywood facing, or heavy-duty geotextile cushions provide a stable backing. The membrane cannot span large gaps without risking a blowout during the concrete pour. Removing sharp protrusions is mandatory. Rebar ends and tieback heads must be cut flush or padded. A smooth, flush surface prevents membrane bridging. Bridging creates tension points that rupture under the immense weight of wet concrete.
I always mandate a substrate walk-through before any membrane is hung. We look for voids larger than an inch, sharp edges, and active water leaks. If the substrate is not ready, the waterproofing contractor should not start. Pushing forward on a bad substrate guarantees failure.
Prefabricated drainage composites, or dimple mats, are installed prior to the blindside membrane. They provide a vital capillary break. These mats channel bulk water down to the foundation drainage system. Relieving hydrostatic pressure during construction is critical. Water must be channeled to foundation drains, perforated pipes, or sump pits. Active weeping through shoring requires immediate management using weep pipes and quick-set hydraulic cement.
Standing water in excavations compromises installation quality. Pumps must run continuously to maintain a dry working environment. Freezing temperatures negatively affect adhesive tapes and fluid-applied detailing. Wind uplift threatens loose membrane sheets. Fastening patterns must account for local wind loads. Excessive UV exposure degrades certain polymer layers. Concrete placement schedules must align with the manufacturer's maximum UV exposure limits.
Hanging and securing the membrane vertically requires precision. The material must be fastened securely to the shoring system. Installers use manufacturer-approved fasteners, such as low-profile washers and powder-actuated fasteners, along the top termination edge. The membrane must be installed taut. Wrinkles, fishmouths, and excessive slack are unacceptable. Loose material folds during the concrete pour, creating voids and compromising the integral bond with the structural wall.
Snap chalk lines on the shoring to ensure plumb installation of the first roll.
Mechanically fasten the top edge of the membrane using termination bars or approved washer fasteners.
Unroll the membrane downwards, keeping it tight against the substrate to prevent billowing.
Install subsequent rolls with the manufacturer-specified overlap (usually 3 to 6 inches).
Stagger end laps to prevent thick build-ups of material at seam intersections.
Creating monolithic barriers requires strict adherence to technical requirements. Heat-welded seams for PVC or TPO utilize double-track hot-air welding. This allows for air-channel testing, providing maximum QA/QC reliability. Self-adhering taped seams for HDPE or bentonite require proper lap dimensions. Surface preparation is critical; all dust and moisture must be removed. Installers must use heavy steel rollers to ensure continuous, void-free contact between the adhesive layers.
When executing Blindside Membrane Installation, seam integrity is your primary defense. A poorly rolled tape seam will peel apart when the concrete hits it. A cold weld on a PVC membrane will split under tension. You must calibrate your welding equipment daily based on ambient temperature and humidity.
Sealing around soil nails, rock anchors, and utility penetrations demands a step-by-step methodology. These areas represent the highest risk for water ingress. Installers integrate liquid-applied detailing membranes and swellable waterstops. Pre-formed pipe boots and clamping rings secure utility penetrations. Structural tieback heads require specialized treatment. Custom steel boxes are often placed over the heads, filled with non-shrink grout, and fully encapsulated with the waterproofing membrane.
The transition from the vertical blindside membrane to horizontal under-slab waterproofing is a critical engineering detail. The connection must be continuous and reinforced. Differential settlement at this junction causes severe stress on the membrane. Terminating at grade level requires securing the membrane to the concrete structure. Installers use aluminum termination bars fastened mechanically. The top edge is sealed with polyurethane sealants and protected by metal counter-flashing.
Blindside membranes cannot function alone at structural joints. Swellable hydrophilic waterstops must be positioned at all vertical and horizontal concrete cold joints. Non-swellable PVC waterstops are also utilized for expansion joints. These waterstops prevent lateral migration if water bypasses the primary membrane. They are essential at construction joints and pour backs. Proper securing of the waterstop prevents displacement during the concrete pour.
Rebar tying, hoisting, and placement pose severe puncture risks. Ironworkers operate in tight spaces with heavy, sharp materials. Strategies to prevent damage must be implemented before steel arrives. Mandating plastic rebar chairs is essential. Sharp metal feet easily slice through polymer membranes. Protective layers, such as extruded polystyrene or protection boards, are required in high-traffic zones. Strict site traffic management and designated pathways protect the installed system.
I have watched ironworkers drag heavy bundles of rebar directly across a newly installed membrane. You must have a dedicated waterproofing inspector on site during rebar placement. Any punctures must be marked and patched immediately before the concrete forms are closed.
Collaborating with the structural engineer and ready-mix supplier is necessary. The concrete mix design directly impacts the waterproofing bond. Optimizing slump is critical for proper flow and consolidation. Specifying superplasticizers achieves high flowability without adding excess water. Maximum aggregate size must be controlled. Large aggregates cause shadowing, creating voids and honeycombing behind the membrane. This compromises the mechanical bond and creates water tracking channels.
| Concrete Parameter | Target Specification | Impact on Waterproofing |
|---|---|---|
| Slump | 6 to 8 inches (with superplasticizers) | Ensures flow into tight spaces, preventing honeycombing against the membrane. |
| Aggregate Size | 3/4 inch maximum | Prevents aggregate shadowing and ensures cement paste contacts the membrane bonding layer. |
| Placement Rate | Controlled lifts (e.g., 3-4 feet per hour) | Prevents blowout of the membrane from excessive fluid pressure. |
Proper concrete vibration prevents honeycombing and ensures continuous membrane-to-concrete contact. However, aggressive vibration poses significant risks. Contractors must balance consolidation needs against potential membrane damage. Vibrator burns melt synthetic membranes. Mechanical damage to the membrane and waterstops occurs if equipment is mishandled. Direct contact of vibrator heads with the waterproofing membrane must be strictly prohibited.
Pre-pour inspection checklists are mandatory. Inspectors verify seam integrity, fastener counts, and penetration details. Non-destructive testing protocols validate the installation before concrete placement. Visual inspections and physical seam probing identify weak points. Vacuum box testing of welded seams confirms airtight seals. Electronic Leak Detection (ELD) and vector mapping pinpoint microscopic breaches before rebar placement. Third-party certified waterproofing consultants verify compliance and validate manufacturer warranties.
Successful blindside membrane installation depends on selecting the right waterproofing system, preparing the substrate correctly, and executing every installation detail with precision. By combining appropriate membrane technology, rigorous quality assurance, and careful coordination during concrete placement, project teams can effectively prevent water ingress, extend the service life of below-grade structures, and significantly reduce long-term maintenance and repair costs.
To maximize installation quality and long-term waterproofing performance, consider the following recommendations:
Base membrane selection on comprehensive geotechnical reports, groundwater analysis, and project-specific site conditions.
Ensure proper substrate preparation, membrane fastening, seam treatment, and waterstop integration before concrete placement.
Coordinate waterproofing installation closely with rebar placement and concrete pouring to minimize membrane damage.
Implement independent inspections, ASTM-compliant testing, and comprehensive quality assurance throughout the entire installation process.
With decades of experience in waterproofing technology and building envelope innovation, CANLON has become a globally trusted manufacturer of advanced waterproofing systems serving commercial buildings, transportation infrastructure, industrial facilities, and residential developments. Supported by continuous research and development, intelligent manufacturing capabilities, and internationally recognized quality management systems, the company delivers reliable waterproofing solutions that meet the demanding requirements of modern underground construction worldwide.

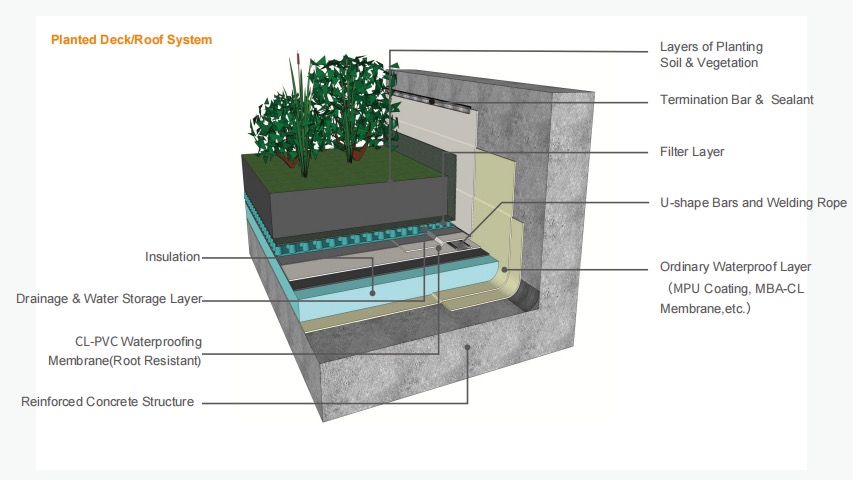

From blindside membrane installation systems and pre-applied waterproofing membranes to roofing waterproofing and complete building envelope solutions, CANLON provides comprehensive products, engineering expertise, customized project support, and long-term technical services. Through continuous innovation and sustainable product development, CANLON helps architects, engineers, contractors, and developers create safer, more durable, and higher-performing structures that deliver lasting value throughout their service life.
A: Positive-side waterproofing is applied to the exterior of a cured foundation wall, requiring excavation access. Blindside waterproofing is installed before the structural concrete is poured, directly against the soil retention system. The concrete is then poured against the membrane, forming an integral bond.
A: Exposure limits vary strictly by manufacturer and material chemistry. Some bentonite systems degrade rapidly if exposed to rain. Synthetic polymer membranes typically withstand UV exposure for 30 to 60 days. Always consult the specific product data sheet for maximum exposure windows.
A: Because the exterior is inaccessible, repairs must be conducted from the negative side (interior). This involves drilling into the concrete and injecting hydrophilic polyurethane or epoxy resins into the crack or void to seal the water ingress path.
A: Installation in extreme conditions is highly restricted. Standing water must be pumped out. Freezing temperatures compromise pressure-sensitive tapes and fluid-applied detailing. Heat-welded PVC systems perform better in cold weather, but substrate moisture still hinders proper installation.
A: Substrates must be sound, relatively flush, and free of sharp protrusions or large voids. For shotcrete, an ICRI Concrete Surface Profile (CSP) of 3 to 4 is generally recommended. Voids larger than 1 inch must be filled with grout or covered with heavy plywood.
A: The membrane relies on continuous, intimate contact with the wet concrete to form its mechanical or chemical bond. Low-slump, stiff concrete creates honeycombing and voids at the membrane interface. High-flow concrete with superplasticizers ensures full consolidation and a uniform bond.
