MPU E
CANLON
MPUTM E
Exposed Single Component Polyurethane Waterproofing Membrane
PRODUCT DESCRIPTION
MPUTM E is a a single component, exposed，self-leveling, liquid applied, coal tar free, moisture cured polyurethane waterproofing membrane.
CHARACTERISTICS / ADVANTAGES
▪ ·Good weather resistance: Nano barrier material
▪ Low maintenance
▪ Seamless
▪ Easy to apply
▪ Applied by brush, roller, or airless spray
▪ Resistant to foot traffic
▪ Good water vapour permeability
▪ Good flexibility at low temperatures
▪ Easily detailed around complex geometries
▪ Cold applied - requires no heat or flame
▪ Meets the requirements of GB/T19250
USES
• waterproof in exposed position of construction engineering, such as roof etc.
PRODUCT INFORMATION

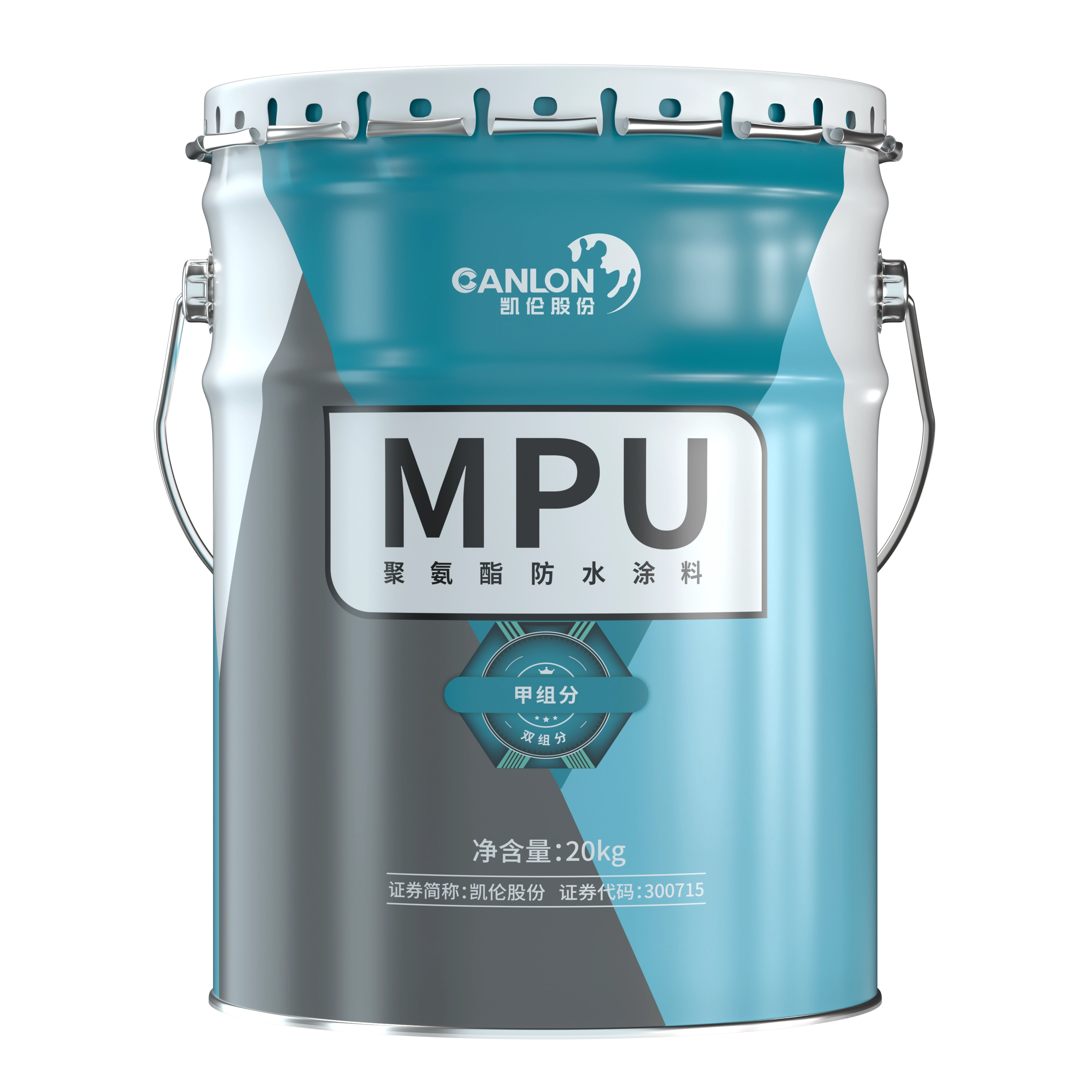

Packaging | 25 kg/pails | |
Shelf Life | 6 months from date of manufacture in original, factory-sealed containers | |
Storage Conditions | Store indoors at temperatures between 5–30 °C,Protect from direct sunlight and frost. | |
Color | Black/White/Light gray | |
Density | 1.5±0.1 kg/l | |
Viscosity | 10000±5000mPa.s(at 23ºC) | |
TECHNICAL INFORMATION | ||
Property | Standard Value | Typical Values |
Solid content by mass/%≥ | 85 | 91.2 |
Surface drying time/h≤ | 12 | 5 |
Hard Drying time/h≤ | 24 | 17 |
Tensile strength/MPa≥ | 2.00 | 3.11 |
Elongation at break/≥ | 500 | 712 |
Tear strength/(N/mm)≥ | 15 | 24 |
Low temperature flexure | -35℃ , no cracks | pass |
Bond strength/MPa≥ | 1.0 | 1.57 |
Water absorption/%≤ | 5.0 | 1.51 |
Volatile organic compound (VOC) content %≤g/L | 200 | 142 |
Artificial weathering （after 1000h） | pass (no blistering, cracking or flaking) | Pass |
Note: The above data are tested under standard test conditions (23℃ ±2℃ ，50%±10% R.H.)
APPLICATION INFORMATION
Reference Dosage | 1.5 kg/m2-1.7kg/m2 per millimeter. Coverage may vary depending upon the nature and texture of the substrate and thickness of the membrane. |
Waiting / Recoat Times | Application on Green Concrete Horizontal: 48 hours or walkable conditions Vertical: 24 hours after forms removed |
BASIS OF PRODUCT DATA
Results may differ based upon statistical variations depending upon mixing methods and equipment, temperature, application methods, test methods, actual site conditions and curing conditions.
LIMITATIONS
Higher temperatures and/or high humidity will accelerate the cure time. In cold weather conditions, use pail warmers or preconditioning to assist in work ability.
▪ Containers that have been opened must be used as soon as possible.
▪ Not recommended for light weight concrete, or asphalt surfaces.
▪ Do not apply to porous or damp surfaces where moisture vapor transmission will occur during application and cure. Exposure to direct sunlight can exacerbate vapor transmission during cure. Apply MPUTM H in shaded areas and/or during falling temperatures or contact Canlon for use of suitable primer in this situation.
▪Do not mix MPUTM E with water when using an airless sprayer.
▪ MPUTM E must not be submerged or subject to ponding water.
▪ All surfaces where MPUTM H is applied must be "sloped to drain" to prevent standing or ponding water.
• Do not apply to contaminated surfaces.
• Use with adequate ventilation.
• Do not apply over a curing or forming oil compound.
ENVIRONMENTAL, HEALTH AND SAFETY
For further information and advice regarding transportation, handling, storage and disposal of chemical products, user should refer to the actual Safety Data Sheets containing physical, environmental, toxicological and other safety related data. User must read the current actual Safety Data Sheets before using any products.
APPLICATION INSTRUCTIONS
SUBSTRATE PREPARATION
Surfaces may be dry or damp, but must be sound and free of standing water, dust, laitance, grease, curing compounds, impregnations, waxes and any other contaminants. Scratch and remove sheen for metal surfaces before applying primer. Scratch marine grade and high density plywood with sandpaper before applying primer.
MIXING
Before application, MPUTM E should be thoroughly mixed using a mechanical mixer and paddle at slow speed for 2 minutes minimum to ensure a homogeneous material. Take care not to allow entrapment of air into the material. Do not mix in an up and down motion.
APPLICATION
Priming: Some warranties and/or substrates may require the use of a primer.Substrates with moisture content > 4% should be primed with the special primer. Use the following primers accordingly: MPUTM402 for concrete.
Waterproofing:MPUTM E may be applied with a brush, squeegee, trowel, airless sprayer or roller in two layers. The first layer is applied 2-3 hours after priming and while MPUTM402 is still tacky. The second layer should be applied crosswise after 8-24 hours, depending on the weather conditions. In case there are dense, multiple cracks all over the surface, it is strongly recommended to fully reinforce MPUTM E membrane with some strips of polyester fleece (60 g/m2 ). These placed strips must overlap by 5-10 cm. In that case, 2-3 hours after priming, the first layer of MPUTM E is applied covering the reinforcement, while still fresh, a strip of polyester fleece is embedded. The same application process is followed over the remaining surface. Two extra layers of MPUTM E are applied over the entire surface. The quartz sand must be completely dry.Apply up to 0.8mm horizontally per coat. Cured membrane must be intact after application to validate warranty.
Curing and Recoating: At 23 °C and 50 % relative humidity, allow each coat of MPUTM E to cure 16–24 hours minimum. If more than 48 hours pass between coats the surface must be solvent wiped and primed with MPUTM402 Primer.
CLEANING OF TOOLS
Equipment should be immediately cleaned with an environmentally safe solvent, as permitted under local regulations.
LEGAL DISCLAIMER
• KEEP CONTAINER TIGHTLY CLOSED
• KEEP OUT OF REACH OF CHILDREN
• NOT FOR INTERNAL CONSUMPTION
• FOR INDUSTRIAL USE ONLY
• FOR PROFESSIONAL USE ONLY
