CanFlex PMP
CANLON
PMPTM 600G-1812

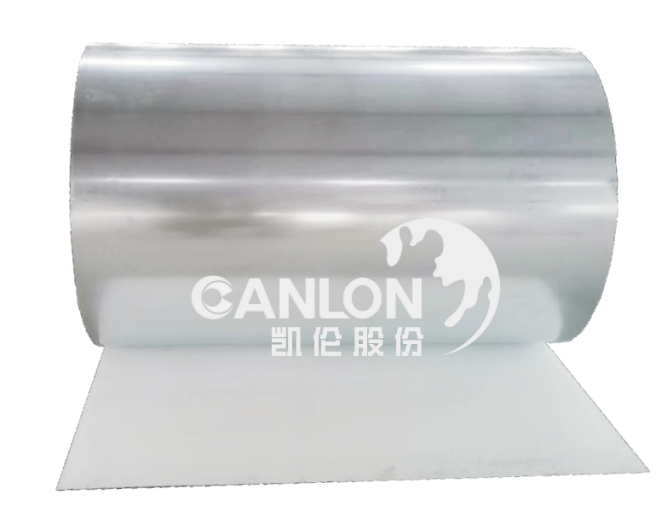

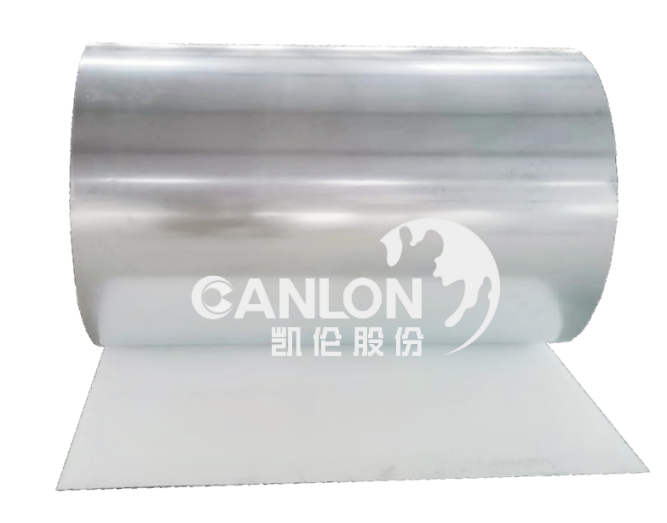

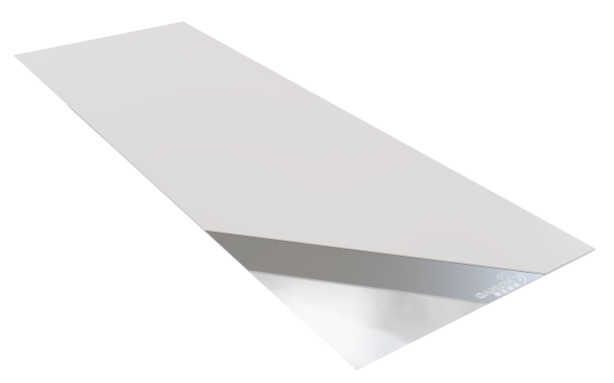

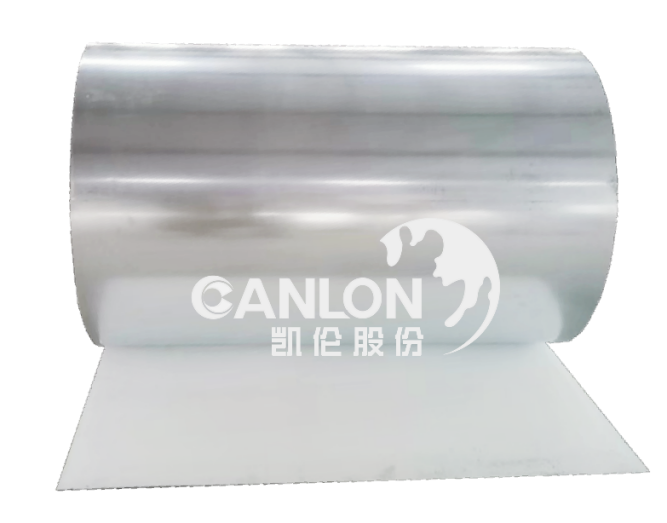

METAL SHEETS OR COILS COATED WITH PVC MEMBRANE
Description
PMPTM PVC Metal Composite Panel is a galvanised steel sheet or coil, coated with PVC roof waterproofing membrane. Suitable for use in hot and tropical climatic conditions.
CHARACTERISTICS / ADVANTAGES
·Resistant to UV exposure
·Can be cut and shaped either in workshop or on site
·Overlapping is hot air weldable
Application
Roofing for for industrial plants.
Storage
The product must be stored in tightly sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Do not stack pallets of Metal sheets or coils on top of each other, or under pallets of any other materials during transport or storage.
Shelf Life
3 years from date of production
PRODUCTION INFORMATION
Composition Top layer PVC membrane
Middle layer Galvanised steel (AZ150)
Bottom layer TPO film
Appearance/Colour Surface Smooth
Thickness
PVC membrane 1.2mm
Galvanised metal 0.6mm
Total thickness 1.8mm
Colour reference
Top surface White, grey, etc
Middle surface Metal
Bottom surface White
Compatibility Top surface PVC membrane is not resistant to oil,tar, bitumen and materials containing solvents. These materials could adversely affect the product properties.
APPLICATION INFORMATION
Ambient Air Temperature -20 °C min. / +60 °C max.
Substrate Temperature -30 °C min. / +60 °C max
IMPORTANT CONSIDERATIONS
Installation must only be operated by Canlon trained and approved contractors. Ensure PVC metal composite sheets and coils are prevented from direct contact with incompatible materials. The application of PVC metal composite sheets and coils are limited geographical locations with average monthly minimum temperatures of -30 °C. Permanent ambient temperature during application is limited to +50 °C.
BASIS OF PRODUCT DATA
All technical data stated in this Data Sheet are based on laboratory tests. Actual measured data may vary due to conditions beyond our control.
ECOLOGY, HEALTH AND SAFETY
The PVC metal composite sheets and coils contain no substances which will be released from the product under normal circumstances during application. Based on our current knowledge, this product does not contain SVHC (substances of very high concern) as listed in Annex XIV of the REACH regulation or on the candidate list published by the European Chemicals Agency in concentrations above 0,1 % (w/w).
LEGAL NOTES
The information, and, in particular, the recommendations relating to the application and end-use of Canlon
products, are given in good faith based on Canlon's current knowledge and experience of the products when properly stored, handled and applied under normal conditions in accordance with Canlon's recommendations. In practice, the differences in materials, substrates and actual site conditions are such that no warranty in respect of merchantability or of fitness for a particular purpose, nor any liability arising out of any legal relationship whatsoever, can be inferred either from this information, or from any written recommendations, or from any other advice offered. The user of the product must test the product’s suitability for the intended application and purpose. Canlon reserves the right to change the properties of its products. The proprietary rights of third parties must be observed. All orders are accepted subject to our current terms of sale and delivery. Users must always refer to the most recent issue of the local Product Data Sheet for the product concerned, copies of which will be supplied on request.
