CanFlex PVC-P1
CANLON
PRODUCT DESCRIPTION

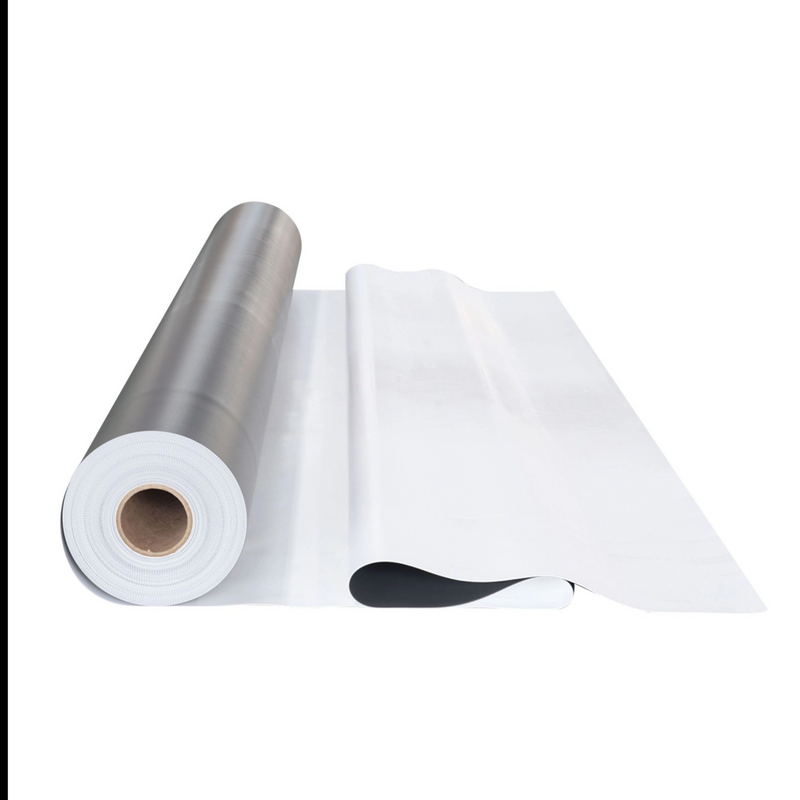

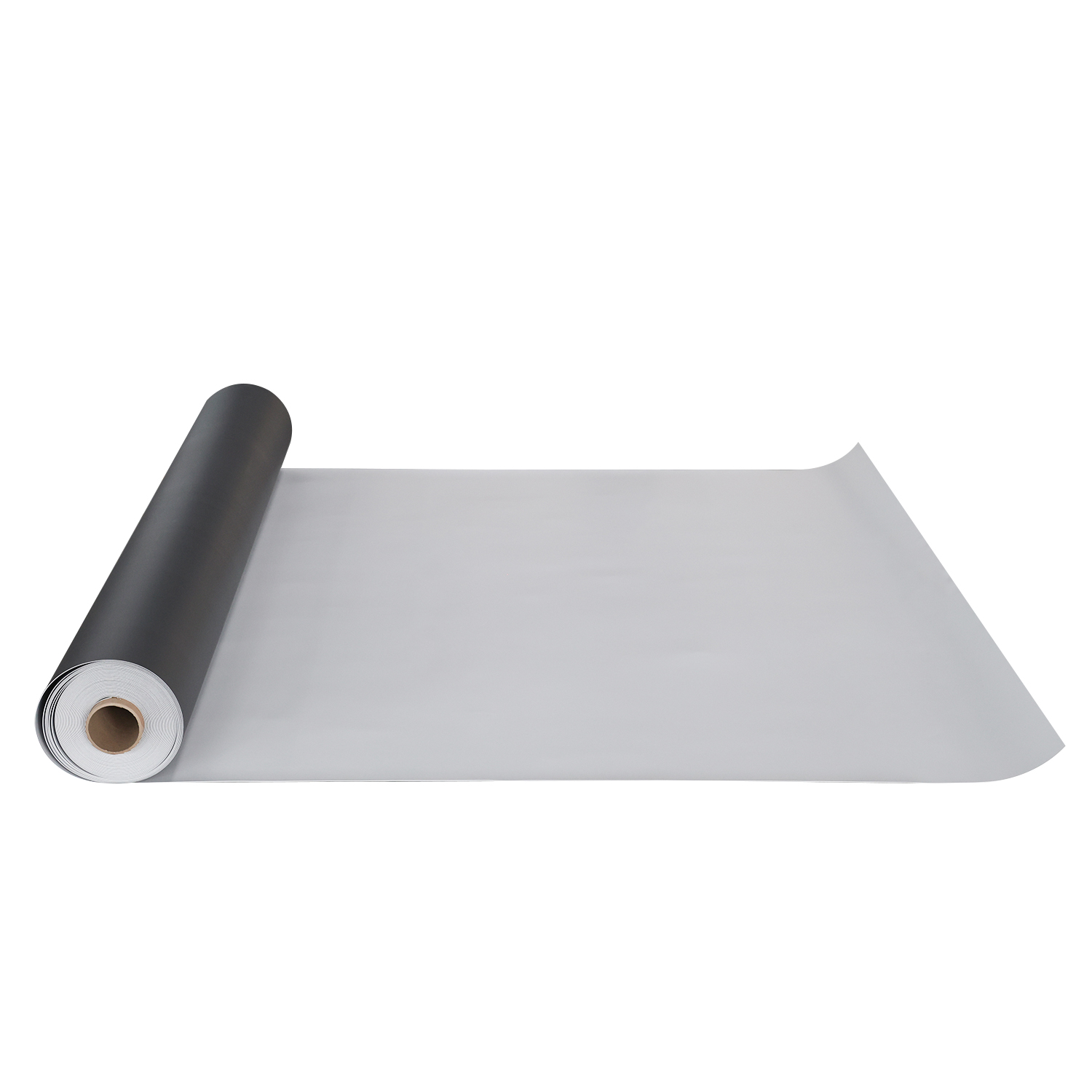

CANFLEX PVC-P1 is a high-quality, polyester-reinforced PVC waterproofing membrane for mechanically fastened roofing systems.
USES
Waterproofing membrane for:
·Mechanically fastened roofing systems
·Loose laid ballasted roofs with different ballast materials (e.g. gravel, concrete slabs)
·Green roofs (intensive, extensive)
·Utility roofs
·Inverted roofs
·Terraces with pedestrian traffic.
CHARACTERISTICS/ADVANTAGES
• UV Resistance: Long-lasting weather protection.
• Welding: Seamless, durable connections.
• Cold Flexibility: Flexible in freezing.
• Elongation: Adapts to movements.
• Impact Resistance: Guards against damage.
• Solar Reflectance: Reduces heat, saves energy.
• Eco-Friendly: Recyclable, sustainable.
PRODUCT INFORMATION
Packaging | 1.2 x25 m | 1.5×20m | 1.8×15m | 2.0×15m |
Thickness | 1.2mm | 1.5mm | 1.8mm | 2.0mm |
Weight | 1.6 kg/㎡ | 1.9 kg/㎡ | 2.4kg/㎡ | 2.6kg/㎡ |
Shelf life | 5 years from the date of manufacture (in unopened, undamaged original packaging). | |||
Storage conditions | Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability. | |||
PRODUCT PROPERTIES
Properties | Performance | Standard |
Watertightness | Passed | EN 1928:2001 |
Mass per Unit Area | Passed | EN 1849-2:2001 |
Reaction to Fire | 2206 g/m2 | EN13501-1+A1:2009 |
Joint Peel Resistance | Class E | EN 12316-2:2013 |
Joint Shear Resistance | Av 710N/50mm | EN 12317-2:2010 |
Tensile Strength in Longitudinal Direction | Av 1526N | EN 12311-2:2013 |
Tensile Strength in Transverse Direction | Av 1696 N/50mm | EN 12311-2:2013 |
Elongation at Rupture- | Av 1545 N/50mm | EN 12311-2:2013 |
Elongation at rupture -Transverse Direction | Av 28% | EN 12311-2:2013 |
Av 24% | EN 12691:2006 | |
Resistance to Static Loading | 0.90m | EN 12730:2001 |
Tear Resistance- | 20 kg | EN 12310-2:2001 |
Tear Resistance- Transverse Direction | Av 643N | EN 12310-2:2001 |
Foldability at low temperature | Av 690N | EN 495-5:2013 |
UV Radiation | -30℃ | EN 1297:2004 |
External Fire Exposure | EXT F.AB | BS 476 pt3:2004 |
BASIS OF PRODUCT DATA
All technical data stated in this Product Data Sheet are based on laboratory tests. Actual measured data may vary due to circumstances beyond our control.
APPLICATION INSTRUCTION
CANFLEX PVC-P1 is installed and fastened to the roof deck using the approved attachment method. The membrane is heat-welded together by trained mechanics using hot-air welding equipment.
MAINTENANCE
Standard maintenance of CANLON systems should include regular inspections of flashings, drains and termination sealants at least twice a year and after each storm.
